Create a Cluster

Provision workload clusters for deploying applications and hosting environments.

Summary​

This guide walks you through creating a new cluster in Konstruct. Clusters can be either physical Kubernetes clusters or virtual clusters, and can use either Konstruct's default templates or your custom templates.

Prerequisites​

  • Platform Admin or Team Admin role
  • Access to the Konstruct UI
  • A cloud account configured in your organization
  • At least one environment created (for workload clusters)

Create Cluster​

  1. Navigate to Clusters in the left sidebar

  2. Click Create cluster to open the cluster creation form

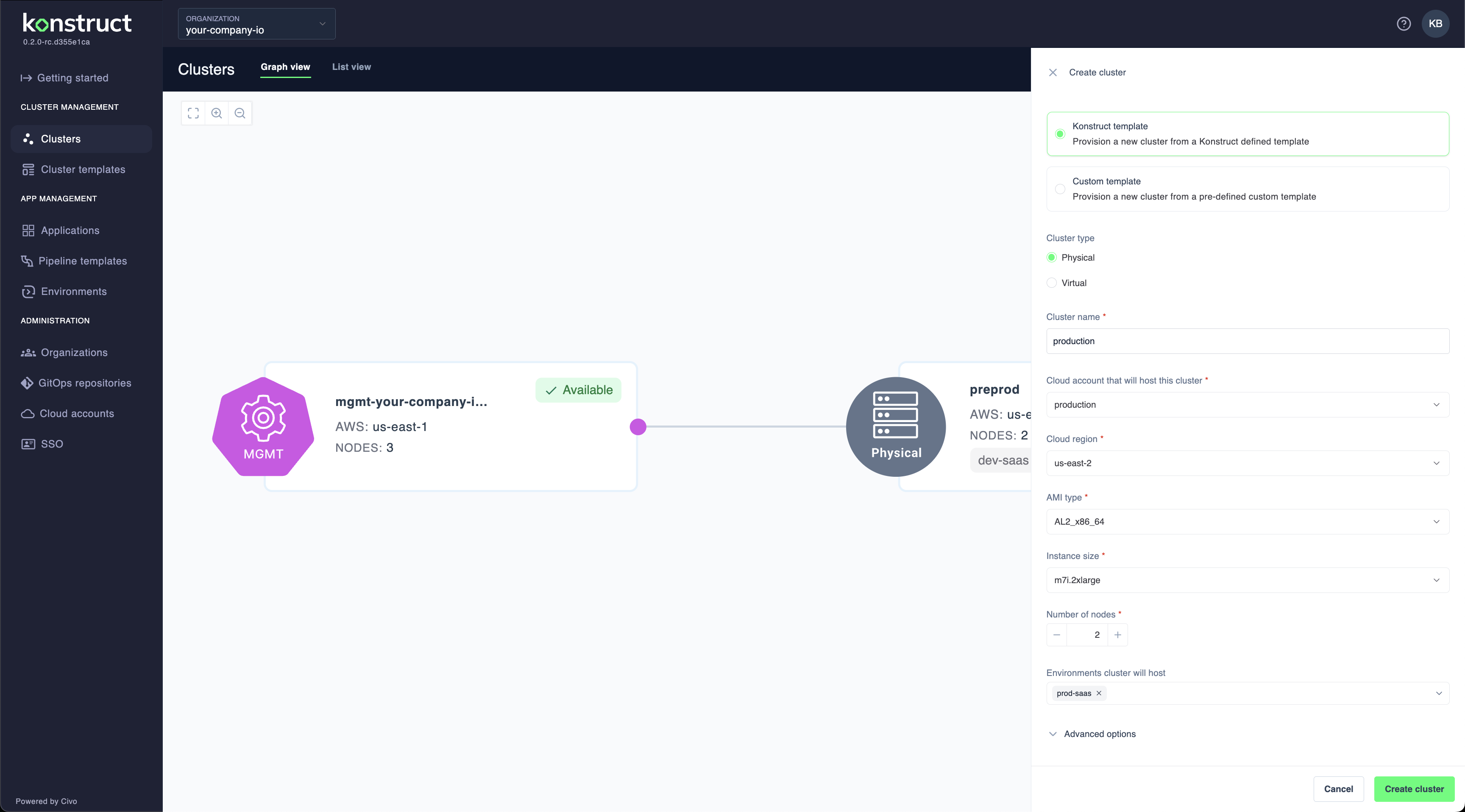

Create cluster form

Template Selection​

Choose how to configure your cluster:

  • Konstruct template: Use a predefined template with standard configurations
  • Custom template: Use a custom cluster template you've created

Cluster Configuration​

  1. Configure the basic cluster settings:

    Cluster type:

    • Physical: Full Kubernetes cluster with dedicated infrastructure
    • Virtual: Lightweight virtual cluster for development/testing

    Cluster name: Enter a unique name (e.g., "production")

    Cloud account: Select the AWS account to provision the cluster in

    Cloud region: Choose the AWS region (e.g., "us-east-2")

  2. Configure the cluster infrastructure:

    AMI type: Select the Amazon Machine Image type (e.g., "AL2_x86_64")

    Instance size: Choose the EC2 instance type (e.g., "m7.2xlarge")

    Number of nodes: Set the initial node count (minimum 2 for production)

  3. Configure environment hosting:

    Environments cluster will host: Select which environment this cluster will host (e.g., "prod-saas")

Advanced Options​

  1. Expand Advanced options if needed to configure additional cluster settings

  2. Click Create cluster to provision the cluster

Important Notes​

  • Physical clusters require more resources and take longer to provision
  • Virtual clusters are faster to create and consume fewer resources
  • Cluster names must be unique within your organization
  • You cannot change the cluster type after creation
